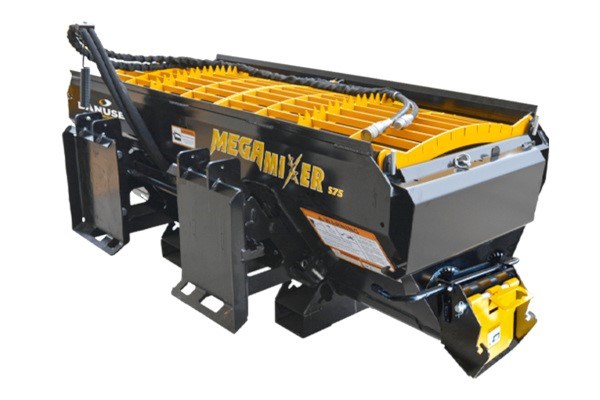

Danuser Mega Mixer

Double tap to zoom



Features

Choose from two models: the rubber-flighted auger (R75) or the all-steel auger (S75). See chart above for complete list of material applications. Each Mega Mixer includes two 2' multi-link chutes that store conveniently on the bucket. Additional chutes are available with chain mounting holes for stronger support. A lockable discharge flap limits spilling and allows for faster material mixing.

With features like chute storage, pin holders, easy-to-read yardage markers, a robust 8" diameter auger coupled directly to a heavy-duty, low-speed, high-torque motor capable of dispensing 3/4 yard of material in 35 seconds (up to 1" diameter rock), the Mega Mixer will save time on the farm or job-site. Unit ships complete, including hoses and flat face ISO couplers.

Danuser R75S75

Specifications

Mega Mixer S75 R75
Height, Grates Lowered (A) 32"
Height, Grates Raised (B) 57.25"
Bucket Width (C) 31"
Overall Width (D) 38.75"
Overall Length (E) 84.75"
Weight 780 lbs. 790 lbs.
Auger Diameter
8"

6" steel with
2" rubber

Center Column Diameter

2 3/8" O.D.
7/32" wall

Auger Length 70"
Auger Flighting Spacing 4.5"



Capacity: 3/4 yd (20.25 cubic ft, 16.27 bushels)
up to 1 yard (27 cubic ft, 21.7 bushels) with optional hopper extension
80 lbs. bags Concrete Mix: Approx. 25 (3/4 yard)
Approx. 35 (1 yard)
Dispense Rate: 35 seconds at 25 GPM
Hydraulic Requirements: up to 25 GPM
up to 3500 PSI
Mounting Options: Skid-Steer
Telehandler
Pallet Forks
