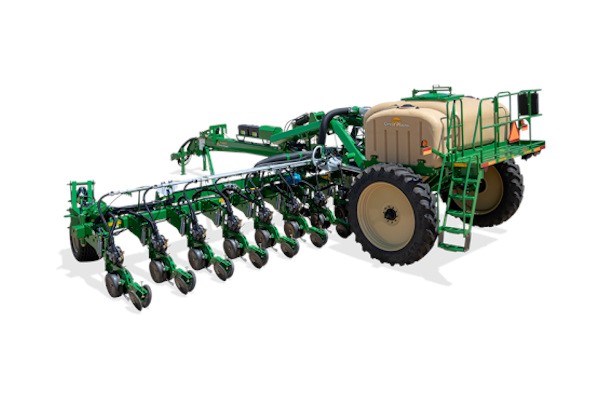

Great Plains PL5800
16-Row Bulk-Fill PL5800
Overview:
Designed with operator experience and profitability in mind, the new Great Plains PL5800 Planter delivers simplicity in operation and accuracy in planting. The PL5800 features a new 5000 Series Row Unit with an all-new Great Plains Air-Pro® Meter and seed delivery system to ensure precise singulation and planting accur... + Read More
Features
SIMPLIFIED FRAME DESIGN
A simplified frame design features redesigned wing toolbars that act as meter air pressure manifolds, eliminating the need for a dedicated air manifold above the toolbar.
NEW WSMT3 CONTROL SYSTEM WITH X35 MONITOR
This new, simplified operator interface features enhanced diagnostic capabilities. The optional Topcon X35 monitor is fully ISO-compatible with all current Great Plains control features unlocked.
NEW 5000 SERIES ROW UNIT
New, shorter closing wheel mounts, available on select row spacings, achieve appropriate seed-to-soil contact and closing accuracy around curves and contours. Alongside the newly-designed meter, the new row unit provides excellent singulation and seed placement for a variety of crops.
IRC, GROUND, OR HYDRAULIC DRIVE
Choose either Individual Row Control (IRC) for consistent in-row seed spacing, even on tight turns; ground drive with a contact drive wheel; or hydraulic drive.
HEMP SEED DISC
New, 5-cell and 30-cell hemp seed disc that meters seed accurately.
BULK DELIVERY
Choose either 82-bu. or 150-bu.(inset) hoppers. 82-bu. hoppers can be equipped with two side tanks for liquid fertilizer. A dual-fan air system with a newly-designed seed pickup system provides advanced seed delivery for many types of seed with various seed treatments.
AIR-PRO® METER WITH OPTIONAL INDIVIDUAL ROW CONTROL (IRC ELECTRIC DRIVE)
The new 5000 Series Air-Pro Meter offers industry-leading singulation with its simple, positive air pressure meter. Optional IRC reduces maintenance by eliminating all chains and shafts, while the individual meter control saves seed through on-demand variable rate and section control. IRC ensures equal seed spacing to maximize field potential, even when navigating curves and field contours. A larger meter seed pool keeps the meter full at higher speeds and provides excellent singulation for a wide variety of crops, including corn, soybeans, peanuts, and more.
ADVANCED AIR DELIVERY SYSTEM
A dual-fan air system with a newly-designed seed pickup system provides advanced seed delivery for many types of seed with various seed treatments, even across uneven terrain.
2-POINT OR HYDRAULIC HITCH
Choose either the 2-point hitch or the hydraulic tongue hitch (inset) for hooking to tractors without 3-point lift arms.
Specifications
| MODEL INFO | 16-Row, Bulk-Fill |
| MODELS | PL5800 |
| ROW SPACINGS | 15", 20", 30", 36", TR30", TR36" 35, 70, TR70cm |
| *H.P. REQUIREMENTS (min) | 165-275 |
| WEIGHT (lbs.) | 15,800 - 20,160 (7,167 - 9,144 kg) |
| DRIVE OPTIONS | IRC (Individual Row Control electronic drive) Variable Rate Hydraulic Drive Contact Drive |
| DIMENSIONS | |
| PLANTING WIDTH | 38' 10" (11.8m) |
| WIDTH (no markers) | 40' (12.2m) |
| WIDTH (transport) | 13' 10" (15", 20", TR30", TR36"), 13' 4" (30"), 13' 6" (36") (4.22m, 4.06m, 4.11m) |
| HEIGHT (transport) | 9' 11" w/o markers, 11' 3" w/markers (3.02m w/o markers, 3.43m w/markers) |
| CAPACITIES | |
| SEED CAPACITY | 82 bu Poly Hopper (2,890 L) 150 bu Poly Hopper (5,286 L) |
| FERTILIZER CAPACITY | 400 gal. total capacity (1,514 L) (Note: Will not work on 150-bushel hopper) |
