H&S HC7116 16-Wheel Hi-Capacity Rake

Double tap to zoom

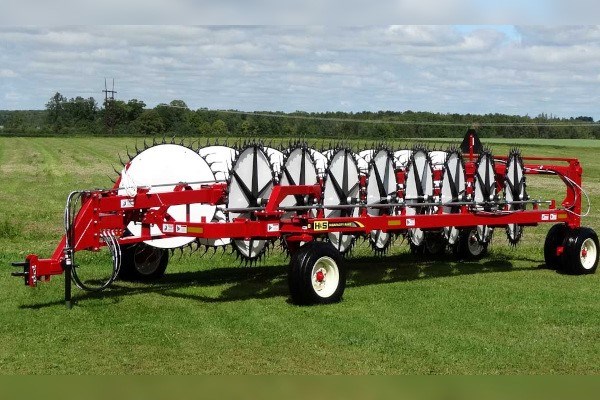

  • The HC7116 HI-CAPACITY 16-wheel rake has the raking wheels positioned ahead of the rake arms, main frame beams, and transport wheels.
  • Maximum raking width from the center of the front left rake wheel to the center of the front right rake wheel is 25’ on the standard rake, and 27’ 3” with a 2-wheel extension.
  • With a high and wide rear frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
  • Disc-style brakes on each front gauge wheels can be easily adjusted to field conditions and road travel.
  • Large independent 60” rake wheels with torsional dampening springs follow the contours of the ground smoothly.
  • A large diameter rake wheel hub is used for added strength to the rake wheel dish.
  • The adjustment for the ground pressure on the rake wheels allows the operator to fine-tune the heavy-duty wheel rakes to fit varying conditions.
  • The rake arms feature two ball bearings on each end of the arm for long life, smooth operation, and less wear than rakes with bushings.
  • The 60” diameter heavy duty rake wheels w/UV treated poly wind panels turn slower for less tooth wear and deliver more capacity.
  • Rear windrow width is adjusted by a hydraulic cylinder – A 3rd remote is needed.
  • Independent articulated rake beams have the flexibility to flex 3’ up or 3’ down.
  • Raking widths can be hydraulically adjusted in any position up to the pre-determined raking width. Setting the spring loaded stop allows you to set a pre-determined raking width.
  • Rear limited oscillating offset tandem transport wheels ensure a smooth, level ride, even over irrigation tracks.
  • An adjustable hitch and jack are standard equipment.


Rake Wheels
Number of Wheels 16
Wheel Diameter 60″
Teeth Per Wheel 18 sets of 2 = 36
Rake Wheel Hubs Tapered Bearings
Ground Pressure Rake Wheel Adjustment Nut/Threaded Rod
Rake Wheel Suspension Independant Rake Wheel Suspension w/Buffered Compression Spring System
Number of Raking Positions 7
Rake Wheel Wind Panels Standard
Jack Standard
Gauge Wheels 2-IF240/80R15IMP
Tandem Rear Transport Wheels 4-IF240/80R15IMP
Hydraulic Requirements 1 Double Acting Cylinder For Folding - 1 Double Acting Cylinder for Rake Wheel Lift
Windrow Width Adjustment Hydraulic
