Bear Cat CH45540

Shop by Brand / Bear Cat / Products / PTO Machines / CH45540

Double tap to zoom



Features

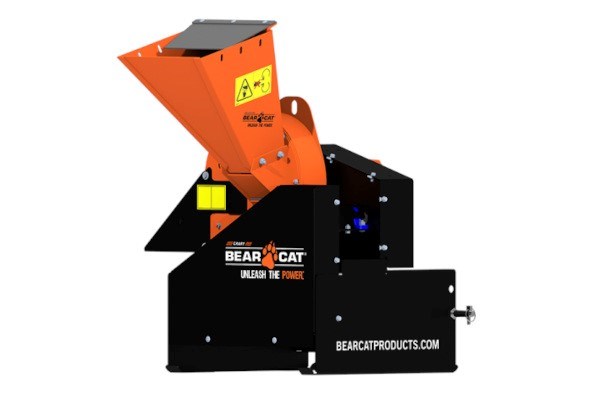

The Crary® Bear Cat® CH45540 is the perfect match for your compact tractor. It’s built with heavy-duty, 7-gauge steel. The 14″ x 1″ thick, 49 pound dynamically-balanced rotor utilizes two reversible heat-treated chipper blades and is driven by a double-banded belt for maximum power transfer. The cantilever mounted rotor design helps reduce wrapping while chipping wet, stringy wood types.

Also available is an optional 4″ x 4.5″ truckloading discharge chute with deflector cap. This optional chute directs the chips and raises the discharge of chips into the trailer or back of a pickup.

NOTE – For Use On Tractors with PTO Horsepower Ratings From 20 hp to 35 hp

CE compliant model available.

Specifications

Power

  • PTO Input Power Range: 20 – 35 hp



Dimensions

  • Max Chipping Capacity: 4.5″
  • Chipper Chute Opening: 13″ x 15″
  • Chipper Chute Throat: 4.5″ x 4.5″
  • Rotor Size/Weight: Cantilevered 14″ x 1″ / 49 lbs.
  • L x W x H: 40″ x 40″ x 44″



Chipper

  • Chipping Blades: 2 Reversible Heat-treated
  • Drive Type: Double-Banded Belt
  • Feed System: Gravity/Self Feed
  • Weight: 361 lbs.
