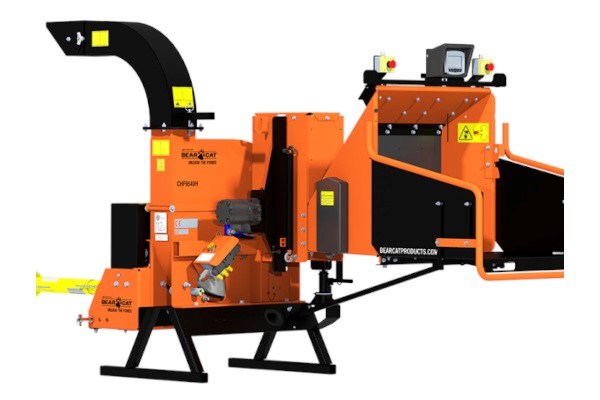

Bear Cat CHF9540H / NOT AVAILABLE

Shop by Brand / Bear Cat / Products / PTO Machines / CHF9540H

Double tap to zoom



Features

This 9-inch capacity Orchard Chipper has 16 reversible chipper blades that produce some of the smallest chips in the industry. With a low profile discharge, it places chips directly onto the ground. Auto-feed speed control system is a standard factory-installed feature on this machine. The hinged service cover allows easy access for maintenance and clean up.

NOTE – For Use On Tractors with PTO Horsepower Ratings From 35 hp to 60 hp

CE compliant model available.

Specifications

Power

  • PTO Input Power Range: 35-60 hp



Dimensions

  • Max Chipping Capacity: 9″
  • Chipper Chute Opening: 31″ x 31″
  • Chipper Chute Throat: 9″ x 9″
  • Rotor Size/Weight: 30″ x 1.25″/275 lbs.
  • L x W x H: 71″ x 52″ x 70″



Chipper

  • Chipping Blades: 16 Reversible Heat-treated
  • Drive Type: Triple-Banded Belt
  • Feed System: Hydraulic
  • Hydraulic Controller: DDC System
  • Weight: 1,460 lbs.
