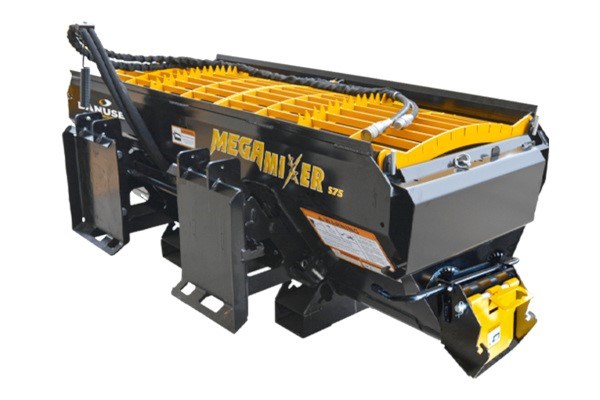

Danuser Mega Mixer

Double tap to zoom



Features

Eliminate backbreaking labor with the Danuser Mega Mixer!

With adjustable mounting brackets and pallet fork tine slots on both sides, the unit can conveniently dispense material to the left or right. Built-in cutting edges and a robust design make it well-suited for scooping from piles. It comes standard with dual safety grates, including integrated bag busters, which can be opened individually from either side. Features such as chute storage, an optional hydraulic gate, easy-to-read yardage markers, and a robust 8" diameter auger coupled directly to a heavy-duty, low-speed, high-torque motor capable of dispensing 3/4 yard of material in 26 seconds (up to 1" diameter rock) make the Mega Mixer a time-saver on the farm or jobsite. The unit ships complete, including hoses and flush-face ISO couplers.

CONVENIENT

  • Adjustable Mounting Brackets
    Conveniently dispense left or right.
  • Built-in Cutting Edges
    Built-in cutting edges and a robust design make it well-suited for scooping from piles.
  • Safety Grates
    Comes standard with dual safety grates, including integrated bag busters that can be opened individually from either side.
  • Chutes
    Includes two 2' multi-link chutes that store conveniently on the bucket. Additional chutes are available with chain mounting holes for stronger support.
  • Discharge
    A closable discharge end limits spilling and allows for faster material mixing.

Specifications

Part ID:  170001 Mega Mixer with Manual Gate

Capacity3/4 yard (20.25 cubic ft., 16.27 bushels)
Up to 1 yard (27 cubic ft., 21.7 bushels)
with optional hopper extension.
Concrete Mix Capacity (80-lb bags)Approx. 25 (3/4 yard)
Approx. 35 (1 yard)
Dispense Rate26 seconds at 25 GPM
Hydraulic RequirementsUp to 25 GPM
Up to 3,500 PSI
Mounting OptionsSkid-Steer
Pallet Forks
(Telehandler)
Height, Grates Lowered (A) (inches)32"
Height, Grates Raised (B) (inches)57.25"
Bucket Width (C) (inches)31"
Overall Width (D) (inches)38.75"
Overall Length (E) (inches)93.75"
Weight805 lb.
Auger Diameter (inches)8"
Center Column Diameter (inches)2.38" O.D., .22" wall
Auger Length (inches)70"
Auger Flighting Spacing (inches)8"
Flight Thickness (inches).38"


Part ID: 170002 - Mega Mixer with Hydraulic Gate

Capacity3/4 yd (20.25 cubic ft, 16.27 bushels)
Up to 1 yard (27 cubic ft, 21.7 bushels)
with optional hopper extension.
Concrete Mix Capacity (80-lb bags)Approx. 25 (3/4 yard)
Approx. 35 (1 yard)
Dispense Rate26 seconds at 25 GPM
Hydraulic RequirementsUp to 25 GPM
Up to 3,500 PSI
Mounting OptionsSkid-Steer
Pallet Forks
(Telehandler)
Height, Grates Lowered (A) (inches)32"
Height, Grates Raised (B) (inches)57.25"
Bucket Width (C) (inches)31"
Overall Width (D) (inches)38.75"
Overall Length (E) (inches)93.75"
Weight960 lb.
Auger Diameter (inches)8"
Center Column Diameter (inches)2.38" O.D., .22" wall
Auger Length (inches)70"
Auger Flighting Spacing (inches)8"
Flight Thickness (inches).38"
