Danuser Euro/Global Quick Attach

Double tap to zoom



Features

Achieve a full stroke with every cycle or utilize the short stroke feature to fine tune your depth

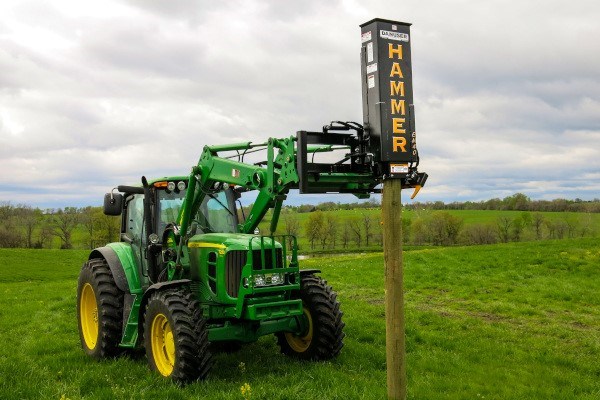

The Hammer drop weight post driver delivers full-impact performance with every cycle—no springs, no hydraulics, no return lines. The 300 lb. hammer drops a full 40 inches for fast, effective driving—and an optional weight kit allows you to increase the total weight to 500 lb., delivering up to 60% more impact force for tougher posts. Use the full stroke for maximum power or switch to short stroke mode for fine-tuned depth control. Add the grapple for true one-person operation and tilt control for up to 20Ëš of precision—without ever leaving your vehicle seat.

INNOVATIVE

  • Grapple
    Grapple option can be added to any model for a true one-person operation (does not include t-posts). The grapple option will allow the operator to grab the post off the ground, load it into the machine, and drive it in the ground without leaving the vehicle seat.
  • Tilt
    Tilt option allows up to 20Ëš in each direction.
  • Additional Weight Kit
    The hammer weight is 300 lb. from the factory. Additional weight can be added for a total of 500 lb., which provides 60% more impact force.
  • Mounts
    Skid-Steer, Tractor Front-End Loader Skid-Steer, and Euro/Global are standard mount options.  Backhoe & Excavator custom mounts are available by submitting the form in the Custom Mounts section below.

Specifications

Part ID: 21013L - Hammer EM40 with Tilt and Grapple Loaded

Post DimensionsT-post to Railroad tie
Impact Force82,000 lb.
Impact Energy1,709 ft.-lb.
Length of Stroke (inches)40"
Hammer Weight500 lb.
Strokes per Minute35
Overall Length (inches)46"
Overall Width (inches)27.5"
Overall Height (inches)64"
Tilt (left or right) (degrees)20°
Machine Weight1,210 lb.
Hydraulic Requirements1,500 - 3,000 PSI; 12 - 30 GPM
Maximum Post Width (inches)8.5" x 9.25"
Tractor Requirements75 HP Minimum

NOTE:  If post/pipe diameter is 5" or smaller and you have a helper, PN 21395 Donut Strike Plate must be purchased separately. If driving with one person, PN 21212 Horseshoe Strike Plate is a better option. See Accessories tab below.
