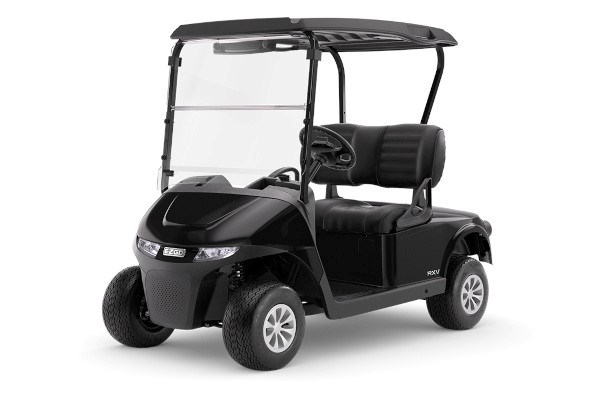

E-Z Go All-New Freedom RXV
Features
Available Powertrains
Explore our industry-leading powertrains – each with unique advantages to enhance your life.
EX1 Gas Engine
A first-of-its-kind, purpose-built, closed-loop EFI gas engine. #1 in fuel economy, with an elevated ride.
ELiTE Lithium
Powered by Samsung SDI Lithium Technology. Maintenance-free batteries with an unbeatable 8-year warranty.
Vehicle Highlights
Modern Front End & Dash
The newly designed Freedom RXV gives you a more streamlined experience for greater ease and unparalleled efficiency wherever you go.
New Modular Canopy
Featuring a sleek new design with a built-in water management system, integrated hands grasps and easy conversion from a 54" top to an 80" top. Available on 4 passenger vehicles only.
Optional Infotainment System
E‑Z‑GO gives a whole new meaning to connectivity with a brand-new optional infotainment system addition with Apple CarPlay® and Android Auto capabilities™.
Hanging Pedals
Automotive-style pedals providing a refined style, improved durability and comfort to every ride.
Specifications
| DIMENSIONS | EX1 GAS | ELITE LITHIUM |
| OVERALL LENGTH | 94.5 in (240 cm) | 94.5 In (240 cm) |
| OVERALL WIDTH | 47.0 in (119 cm) | 47.0 in (119 cm) |
| OVERALL HEIGHT (W/O ROOF) | 47.5 in (121 cm) | 47.5 in (121 cm) |
| OVERALL HEIGHT (W/ ROOF) | 70.0 in (178 cm) | 70.0 in (178 cm) |
| WHEEL BASE | 65.7 in (167 cm) | 65.7 in (167 cm) |
| FRONT WHEEL TRACK | 35.5 in (90 cm) | 35.5 in (90 cm) |
| REAR WHEEL TRACK | 38.0 in (97 cm) | 38.0 in (97 cm) |
| GROUND CLEARANCE @ DIFFERENTIAL | 4.0 in (10 cm) | 4.0 in (10 cm) |
| POWER | EX1 GAS | ELITE LITHIUM |
| POWER SOURCE | Single Cylinder OHC, 4 Cycle, 9.15 cu in (150 cc) | 56 Volts AC |
| HORSEPOWER (KW) | 11.5 hp (8.6 kW) J1995 Standard | 4.4 hp (3.3 kW) Continuous |
| ELECTRICAL SYSTEM | Brushless DC Internal Starter Generator | 56 Volt |
| BATTERIES (QTY/TYPE) | One, 12-Volt Maintenance-Free | ELiTE 2.0, 56V Lithium |
| KEY OR PEDAL START | Pedal | Pedal |
| BATTERY CHARGER | N/A | Lithium World Charger 56VDC (11 ft., 18 ft.) Cord |
| SPEED CONTROLLER | N/A | 235 Amp AC Controller |
| DRIVETRAIN | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| TRANSAXLE | Differential W/ Helical Gears | Limited Slip Differential |
| GEAR SELECTION | Forward-Reverse | Dash Mounted Forward-Neutral-Reverse |
| REAR AXLE RATIO | 11:47:1 (Forward) 14:35:1 (Reverse) | 16.99:1 |
| PERFORMANCE | EX1 GAS | ELITE LITHIUM |
| SEATING CAPACITY | 2 or 4 Passenger | 2 or 4 Passenger |
| DRY WEIGHT | 676 lb (307 kg) | 605 lb (275 kg) (Without Batteries) |
| CURB WEIGHT | 692 lb (314 kg) | 655 lb (298 kg) (With two Li-Ion Modules) |
| VEHICLE LOAD CAPACITY | 500-800 lb (227-360 kg) | 500-800 lb (227-360 kg) |
| OUTSIDE CLEARANCE CIRCLE | 19.0 ft (5.8 m) | 19.2 ft (5.8 m) |
| SPEED (LEVEL GROUND) | 19 mph ± 0.5 mph (31 kph ± 0.8 kph) | 17.5-19.5 mph (28-31 kph) |
| STEERING & SUSPENSION | EX1 GAS | ELITE LITHIUM |
| STEERING | Double-Ended Rack and Pinion | Double-Ended Rack and Pinion |
| SUSPENSION | Front: Independent A-Arm Coil-Over Shock; | Front: Independent A-Arm Coil-Over Shock; |
| SERVICE BRAKE | Rear Wheel Mechanical Self-Adjusting Drums | Induction Motor |
| PARKING BRAKE | Self-Compensating, Single Point Engagement | Automatic Electro-Magnetic |
| TIRES | 18 x 8.50-8 (4-ply rated) | 18 x 8.50-8 (4-ply rated) |
| BODY & CHASSIS | EX1 GAS | ELITE LITHIUM |
| FRAME | Welded Steel with Powder-Coat Protection | Welded Steel with Powder-Coat Protection |
| BODY & FINISH | Injection Molded TPO | Injection Molded TPO |
| AVAILABLE BODY COLORS | Forest Green, Almond, Black, Bright White, Burgundy, Inferno Red, Ivory, Metallic Charcoal, Ocean Gray, Platinum, Patriot Blue, Slate | Forest Green, Almond, Black, Bright White, Burgundy, Inferno Red, Ivory, Metallic Charcoal, Ocean Gray, Platinum, Patriot Blue, Slate |
| AVAILABLE SEAT COLORS | Stone Beige, Oyster, Black | Stone Beige, Oyster, Black |
| AVAILABLE PREMIUM SEAT COLORS | Mushroom, Gray, Black (custom colors also available) | Mushroom, Gray, Black (custom colors also available) |
