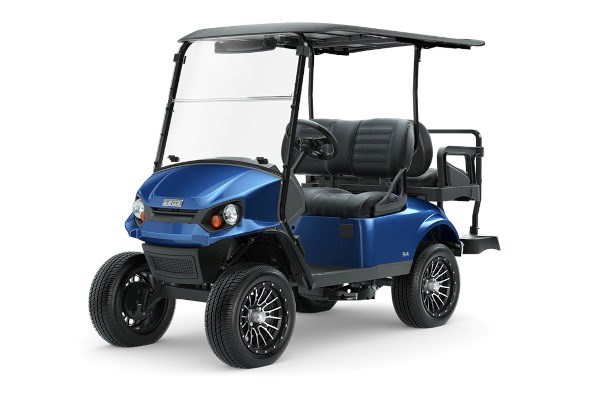

E-Z Go Express S4
Features
Available Powertrains
Explore our industry-leading powertrains – each with unique advantages to enhance your life.
ELiTE Lithium
Powered by Samsung SDI Lithium Technology. Maintenance-free batteries with an unbeatable 8-year warranty.
Standard Gas
Powerful and reliable 13.5 hp Kawasaki gas engine
Vehicle Highlights
ELiTE Lithium Battery Pack Options
With the choice of the 2.2 single, 4.2 twin or 6.2 triple maintenance-free ELiTE lithium battery pack, you will always be good to go.
Premium Tire and Wheel Options
Give another level of customization to your 4-passenger golf cart with stylish tire and wheel options that improve your ride.
Deluxe Interior with Upgraded Steering Wheel and Dash
Be the talk of your neighborhood with a new level of customization including more dashboard storage, stylish steering wheel and an upgraded dash.
New Modular Canopy
Featuring a sleek new design with a built-in water management system, integrated hands grasps and easy conversion from a 54" top to an 80" top.
Specifications
| DIMENSIONS | ELITE LITHIUM | GAS |
| OVERALL LENGTH | 115 in (292 cm) | 115.6 in (293 cm) |
| OVERALL WIDTH | 49.5 in (124 cm) | 48.5 in (123 cm) |
| OVERALL HEIGHT (W/O ROOF) | 52 in (132 cm) | 52.5 in (133 cm) |
| OVERALL HEIGHT (W/ ROOF) | 82 in (208 cm) | 83 in (210 cm) |
| WHEEL BASE | 67.5 in (171 cm) | 65.5 in (166 cm) |
| FRONT WHEEL TRACK | 37.9 in (96.3 cm) | 38.5 in (98 cm) |
| REAR WHEEL TRACK | 39.2 in (99.6 cm) | 38.5 in (98 cm) |
| GROUND CLEARANCE @ DIFFERENTIAL | 7.3 in (18.5 cm) | 6 in (15 cm) |
| POWER | ELITE LITHIUM | GAS |
| MOTOR TYPE | 56 Volt DC | 4 Cycle 24.5 cu in (401 cc) |
| HORSEPOWER (KW) | 11.7 hp (8.7 kW) Peak | 13.5 hp (10.1 kW) Exceeds SAE J1940 Std |
| ELECTRICAL SYSTEM | 56 Volt DC | Starter/Generator - Solid State Regulator |
| BATTERIES (QTY/TYPE) | Single, 56 V Li-Ion (Standard Configuration) | One, 12 Volt Maintenance Free |
| KEY OR PEDAL START | Pedal Start | Pedal Start |
| AIR CLEANER | - | Industrial Rated Dry Filter |
| LUBRICATION | - | Pressurized Oil System |
| OIL FILTER | - | Spin-On |
| COOLING SYSTEM | - | Air Cooled |
| FUEL CAPACITY | - | 5.96 Gallon (22.6 L) Tank |
| BATTERY CHARGER | 56VDC, 120/230 VAC, UL/CSA, CE | Â |
| SPEED CONTROLLER | 235 Amp AC | - |
| DRIVETRAIN | Motor Shaft Direct Drive | Continuously Variable Transmission (CVT) |
| TRANSAXLE | Differential with Helical Gears | Differential with Helical Gears |
| GEAR SELECTION | Dash Mounted Forward-Neutral-Reverse | Dash Mounted Forward-Neutral-Reverse |
| REAR AXLE RATIO | 17:1 (Forward) | 11.47:1 (Forward); 14.35:1 (Reverse) |
| PERFORMANCE | ELITE LITHIUM | GAS |
| SEATING CAPACITY | 4-Passenger | 4-Passenger |
| DRY WEIGHT | 918 lb (428 kg) (without batteries) | 1061 lb (481 kg) (without battery) |
| CURB WEIGHT | 965 lb (462 kg) | 1101 lb (499 kg) |
| VEHICLE LOAD CAPACITY | 800 lb (363 kg) | 800 lb (360 kg) |
| TURNING RADIUS | 11.0 ft (3.4 m) | 11.0 ft (3.4 m) |
| OUTSIDE CLEARANCE CIRCLE | 22.8 ft (7.0m) | 20.3 ft (6.2m) |
| SPEED (LEVEL GROUND) | 19 mph (31 kph) max | 19 mph (31 kph) max |
| STEERING & SUSPENSION | ELITE LITHIUM | GAS |
| STEERING | Self-Compensating Rack and Pinion | Self-Compensating Rack and Pinion |
| SUSPENSION | Leaf Springs with Hydraulic Shock Absorbers | Leaf Springs with Hydraulic Shock Absorbers |
| SERVICE BRAKE | Rear Wheel Mechanical Self-Adjusting Drum | Rear Wheel Mechanical Self-Adjusting Drum |
| PARKING BRAKE | Self-Compensating, Single Point Engagement | Self-Compensating, Single Point Engagement |
| TIRES | 185/60 Kruizer on 14-in. SPDR Wheels (Commuter Package), 23x10 Paramount M/T on 14-in. Black SPDR Wheels (Explorer Package) | 185/60 Kruizer on 14-in. SPDR Wheels (Commuter Package), 23x10 Paramount M/T on 14-in. Black SPDR Wheels (Explorer Package) |
| BODY & CHASSIS | ELITE LITHIUM | GAS |
| FRAME | Welded steel with E-coat & DuraShield powder coat | Welded steel with E-coat & DuraShield powder coat |
| BODY & FINISH | Injection Molded TPO | Injection Molded TPO |
| AVAILABLE BODY COLORS | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Gray, Platinum, Bright White, Slate | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Gray, Platinum, Bright White, Slate |
| AVAILABLE SEAT COLORS | Black, Grey on Black, White on Beige | Black, Grey on Black, White on Beige |
| AVAILABLE PREMIUM SEAT COLORS | Black, Mushroom, Grey | Black, Mushroom, Grey |
