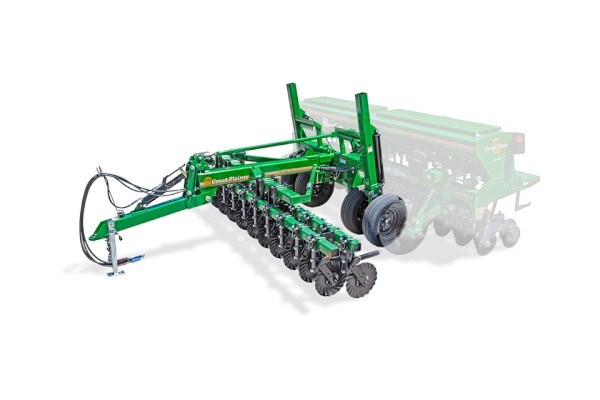

Great Plains PH-20 / NOT AVAILABLE

CENTER PIVOT DESIGN

This design features a pivot halfway between the rigid 450 lb. preloaded coulter and double disc opener. It works like an articulated 4-wheel drive tractor—the rear opener track follows the front coulter track perfectly! No drifting on side hills, no cutting corners on curves. Just perfect tracking and seed placement, all the time.

ROCKSHAFT DESIGN

The rockshaft lift gives this unit plenty of lift capacity to pick up a full planting unit plus 400 gallons of on-board fertilizer. The dual 12.5L tires are designed to straddle 30" rows. Automatic pivot locks engage when fully raised to the transport position.

WEIGHT TRANSFER/BUILT-IN WEIGHT BRACKET (CPH & PFH)

Up to 3,250 lbs. can be transferred hydraulically from the tractor to the coulter bar to ensure consistent, proper coulter depth. If more weight is needed, add up to 2,000 lbs. to the built-in mainframe weight bracket.

COULTER CHOICES (CPH & PFH)

Choose between a wide ¾" wavy blade, a 5/8" Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 5/16" fluted coulter blade that penetrates easily (CPH).

FERTILIZER TINES (PFH)

Spring steel fertilizer tines with stainless steel nozzles run directly behind the coulters for excellent placement of liquid fertilizer.

PIVOT STABILIZER (CPH & PFH)

Shock absorbers mounted at the pivot between the tongue and frame stabilize the hitch, creating smooth field turns that reduce wear and improving the seed placement consistency of the attached drill or planter.
