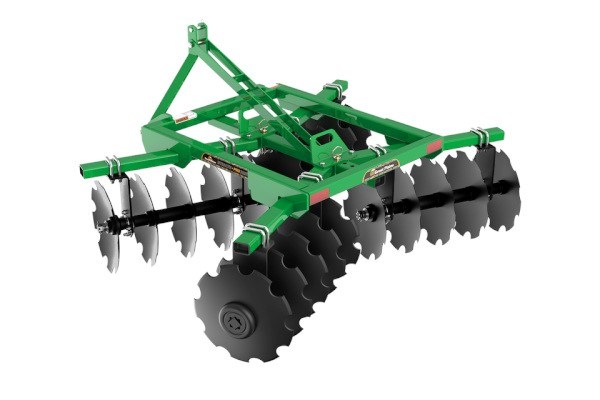

Great Plains Stealth Pro DH6

Double tap to zoom



Features

FRONT & REAR GANG ANGLES

Front and rear gangs adjust to adapt the aggressiveness to fit your conditions. Gangs have three or four preset angle settings, depending on the model.

GANG ADJUSTMENT HANDLE

Use the built-in handle to make gang-angle changes quickly – no additional tools are required.

HEAVY-DUTY BEARING HANGERS

Heavy-duty hangers resist the high torque from U-bolts and keep the discs out of the ground.

HIGH CARBON STEEL SQUARE GANG AXLES

Large axles add strength in difficult conditions, resisting high loads as the blades roll through the ground.

NOTCHED BLADES

The notched blades provide aggressive digging and cutting action for better penetration than smooth blades. The DH6 is fitted with 18" blades, while the DH8 model utilizes 20" blades.

QUICK-HITCH COMPATIBLE

The Cat. I (DH6 & DH8) & II (DH8) 3-point hitch is quick-hitch compatible. This allows you to quickly connect and disconnect from the implement.

SEALED, GREASEABLE BALL BEARINGS

Self-aligning, sealed, greaseable ball bearings offer long life while working through difficult terrain.

SQUARE FRAME TUBING

Stronger than angle iron, our tubing comes in 2½" for the DH6, and 3" for the DH8. The DH8 frame can handle 100 HP tractors.

WORKING WIDTH

Stealth Pro Series Disk Harrows are offered in two working widths: 6' (72") wide for the DH6 and 8' (96") wide for the DH8.

Specifications

Disk HarrowStealth Pro DH6
Working Width72"
Weight (lbs.)714
Weight Per Blade (lbs.)34
Engine H.P. Required<65
Hitch TypeCat. I
Blades20 (18")
Blade Spacing7.5"
Bearing Hanger3/8" plate, 5/8" U-Bolts (2 ea.)
Gang Angle0, 7, 14, 21 degrees
