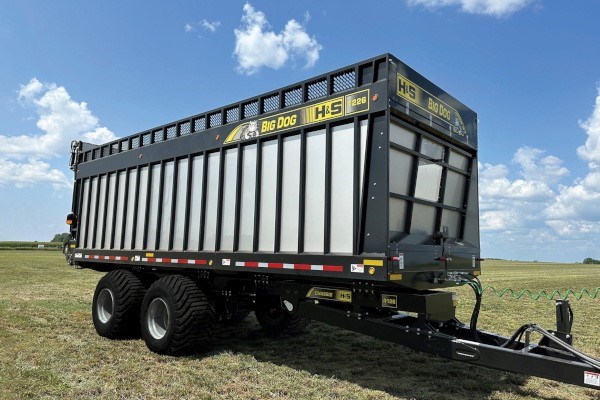

H&S BD1226 - 26'

• Truck mounted box: Choice of top pivot door w/hydraulic gate delay, or barn doors w/air closure.
• Chassis mount box: Choice of top pivot door w/hydraulic gate delay, or barn doors w/hydraulic closure.
• PL88C open barrel pintle chain @ 29,900# per strand = 119,600#
• 2″ x 1″ x 3/16″ formed apron channels for apron cross bars.
• The BIG DOG features 1″ steel lines to the dual hydraulic motors at the rear of the box.
• The dual hydraulic motors evenly drive the dual gear case drive system for more power and less shaft stress than a single motor system.
• The drive shaft features MD nylon reversible-style bearings.
• Panels above the rear wheels act as a chain slide for the main apron and protect mud and debris from getting to the apron chain.
• 16-gauge stainless steel sides
• The floor is ½″ thick virgin grade solid poly.
• Two large front windows for viewing when unloading
• The idler apron shaft assembly features 6-tooth machined steel sprockets with bronze idler bushings.
• Adjustable spring-loaded tighteners on the front main apron idler shafts maintain tension on the apron during start up and operation.
• Spring-loaded main apron tighteners
• LED lighting
• Customer farm name – NO CHARGE!

Options

• Electric Actuator Control for Flip Down Front
• Roof Hood
• Top Pivot Door Seal Kit
• Electric Drive Flip Tarp
• Electric Drive Side-to-Side Tarp
• Truck Mount Digi-Star Scale System
• Reverse Apron System
• Screen Filler Kit for One Side
