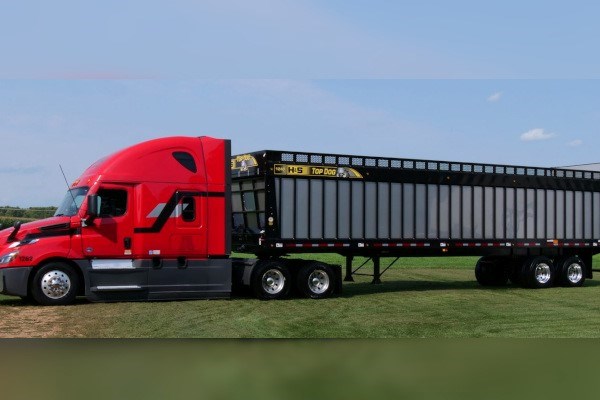

H&S TD1240 – 40′

• The main frame is made of high-quality formed steel 10″ I-beams for the rear and continuing full length at 5″ under the 5th wheel area.
• New 25,000# spring axles w/heavy-duty spindles are standard.
• 16-gauge stainless steel sides
• The PL88C open barrel main apron pintle chain at 29,900# per strand stays flexible.
• 2″ x 1″ x 3/16″ formed apron channels are used for the apron cross bars.
• The floor is ½″ thick virgin grade solid poly.
• The TOP DOG features 1″ steel lines to the dual hydraulic motors at the rear of the box.
• The dual hydraulic motors evenly drive the dual gear case drive system for more power and less shaft stress than a single motor system.
• The driveshaft features MD nylon reversible-style bearings.
• Panels above the front & rear wheels act as a chain slide for the main apron and protect mud and debris from getting to the apron chain.
• 3 large front windows for viewing when unloading
• The idler apron shaft assembly features 6-tooth machined steel sprockets with bronze idler bushings.
• Adjustable spring-loaded tighteners on the front main apron idler shafts maintain tension on the apron during start-up and operation.
• Choice of a top pivot door with gate delay system and door locks, or barn doors with air closure.
• LED lighting is standard equipment
• Customer farm name – NO CHARGE!

Options

• Reverse Apron System
• Electric Actuator Control for Flip Down Front
• Roof Hood
• Top Pivot Door Seal Kit
• Electric Drive Flip Tarp
• Electric Side-to-Side Tarp
• Air Suspension in lieu of Spring Suspension
• Screen Filler Kit for One Side
