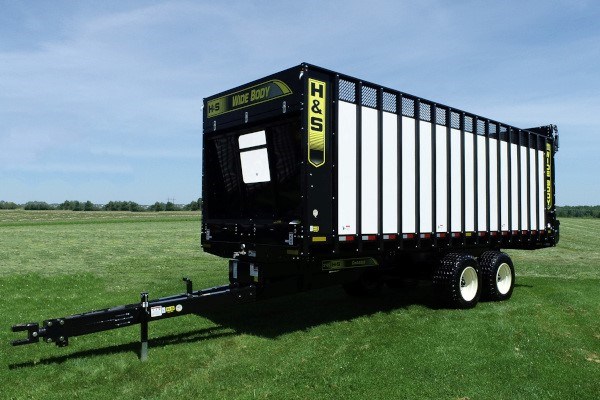

H&S WB8222 22'

Double tap to zoom

Available in truck or chassis mount.
8′ inside width
Painted steel front panel & rear door
Fiberglass Reinforced Plywood (FRP) Sides
Mesh screen top sides
Bolted front flip down panel
Side stakes are 2 ½″ x 2 ½″ 10-gauge tubular steel with a 15 ½” spacing between them.
The patented hydraulic center mount drive system provides smooth, trouble-free operation.
Spring-loaded tighteners on the main apron drive
Cross Z-iron is welded to the side channels in-line with the stakes for added strength.
The poly floor features four formed steel channel supports that run lengthwise under the floor for added strength.
5″ side channels are welded to the stake pockets for added strength and are also used as a chain return slide.
Choice of double barn doors with air or hydraulic closure, or a top pivot rear door with dual cylinder hydraulic gate delay.
LED highway lighting

Options

MODEL	WB8222 22'
Dimensions
Inside Width	96″
Inside Height (floor - top of side)	86″
Inside Length	22′
Overall Length	22′ 9″
Overall Width	102″
Standard Box Overall Height	101″
Weight - Standard Box	7,570#
Capacity
Standard Box Capacity Struck Level	1,244 Cu Ft
Construction
Box Material	FRP
Drive System
Main Apron Chain	667XH
Main Apron Drive	Hydraulic Drive
Unload Speed	Unload Time is Dependent on Tractor RPM, Hydraulic Pressure and GPM
Door Choices
Rear Door(s) w/Auto Lock/Unlock	Top Pivot Door w/Dual Cylinder Hydraulic Gate Delay, Barn Doors w/Air Closure (Truck Mount) or Hydraulic Closure (Chassis Mount)

WB8222 22'
