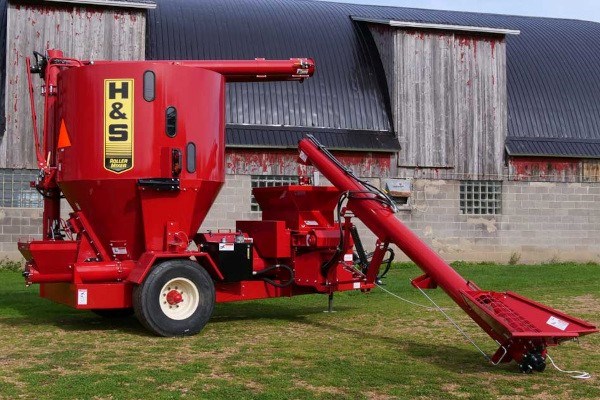

H&S RM7117

Double tap to zoom

The self-contained hydraulic system includes a pulley-driven pump and a 15-gallon reservoir w/filter system provides circulation to cool the oil. The hydraulic motor provides a flow of 12 GPM.
Magnets in either of the machines remove any metal that may accidentally mix with the material entering the mill.
The 240-degree swing radius of the unloading auger allows repositioning of the discharge auger from one side of the machine to the other without moving the grinder-mixer.
A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
An adjustable slip clutch on the auger rotation provides protection if foreign objects are encountered.
Mixer drive systems are shear bolt protected.
A large discharge door provides high-capacity unloading.
Mixer feeding attachments and unloading mechanisms are all driven hydraulically.
5-porthole windows allow the operator to see feed levels.
A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
Mixers feature a side mounted supplement hopper.
Transport lights are standard equipment.

Options

MODEL	RM7117
Capacity
Tank Capacity - Bushel	135
Tank Capacity - Cubic Ft.	167
Dimensions
Tank Diameter	74"
Overall Height	10′ 8″
Overall Length	15′
Ground Clearance	12″
Standard
Diameter of Mixing Auger	14″ Diameter w/30″ Base
Ladder	Foldable Rear Mount Non-Slip
Tank Windows	5-Port Hole Style
Supplement Hopper	Side Mounted
Feeder	Standard Gravity Hopper
Tires	12.5L - 15 - 20 Ply
Jack	Standard
Tractor Requirements
PTO Drive	540 RPM
H.P. Requirement	540 RPM up to 125 HP
Hydraulic System
Self-Contained	Includes Pump, 15 Gallon Reservoir w/Filter and Pressure Relief Valve
Pump Pressure	3,200 PSI Maximum
Oil Flow	12 G.P.M.
Discharge Auger System
Unloading Auger Tube Diameter	8″
Unloading Auger Length	12′
Unloading Auger Rotation	240 Degrees
Unloading Auger Reach Standard	Approx. 19′ at 53 Degrees
Unloading Auger w/3' Extension	Approx. 21′ 6″ at 53 Degrees
Unloading Auger w/6' Extension	Approx. 23′ 10″ at 53 Degrees
Roller Mill
Rolls	2 - 18″ Wide x 16 Diameter Chill Cast Rolls
Roll Drive	540 RPM Direct
Grooves Per Inch (GPI)	Choice of 4, 5, 6, 8, 10, 12 or 15 GPI Rolls
Roll Protection	Leaf Spring
Magnets	Top Hopper w/Grate Magnet

RM7117
