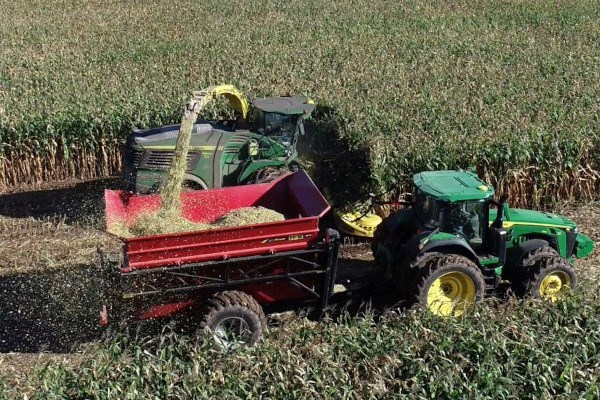

H&S HDB9215 15' Loadmaster X

Shop by Brand / H&S / Hi-Dump Box / HDB9215 15' Loadmaster X

Double tap to zoom



Features

  • Combination 10- and 12-gauge steel tub construction.
  • Heavy gusseted and reinforced box-style frame.
  • With a GVWR rating of approximately 45,000 lbs., and an empty box weight of around 15,000 lbs., the HDB9215 is capable of lifting and dumping approximately 30,000 lbs. of product.
  • The variable dumping height gives you more versatility at harvest time.
  • The ENTIRE dumping cycle takes approximately two minutes depending on hydraulic supply output.
  • The master/slave hydraulic system automatically rephases at the end of each cylinder stroke and has the flexibility to top off a truckload with a partial dump – not restricted to a full dump cycle.
  • Right-hand dump has a 47-degree dumping angle.
  • (1) 27” x 16” sight windows and (2) tub access panels.
  • Highway lighting w/beacon.
  • Adjustable height single clevis swivel hitch.
  • Telescoping/adjustable length pole.
  • Heavy-duty 4½” spindles.
  • Rear tow hooks.
  • 12,000# jack.
  • Safety chain.



Options

  • 18' Dumping Lip Extension
  • Two Weight Boxes with Brackets
  • One Weight Bracket for Suitcase Weights with Hardware (Up to Two per Box)
  • Ten Suitcase Weights

Specifications

MODELHDB9215
Capacity
Cubic Ft. Capacity Struck Level w/o Ext.863
Cubic Ft. Capacity Struck Level w/ Ext.1,129
Dimensions
Inside Length of Box/Boxes180" (15')
Inside Width of Box/Boxes - Bottom/Top65"/136" (5' 5"/11' 4")
Depth of Box/Boxes89" (7' 5")
Overall Length Min./Max w/ Pole Adjustment304"/328" (25' 4"/27' 4")
Overall Width158" (13' 2")
Shipping Width (top slide to hub cap)143" (11' 11")
Loading Height130" (10' 10")
Shipping Height117" (9' 9")
Maximum Ground Clearance15" (1' 3")
Shipping Weight w/ Tires15,243 lbs.
Unloading Dimensions
Maximum Dump Lip Clearance31" (2' 7")
Minimum Dump Height116" (9' 8")
Maximum Dump Height184" (15' 4")
Tread Width
Tread Width121" (10' 1")
Standard
Spindle Size4.5"
Tires30.5x32 R1 16 Ply Radial Tires
Jack12,000 lbs
HitchAdjustable Height Clevis Swivel Hitch
Cylinders
Front Lift Cylinder (size/length on each box)5.5" x 72"
Rear Lift Cylinder (size/length on each box)4.75" x 72"
Dump Cylinders (size/length on each box)5" x 71.25"
