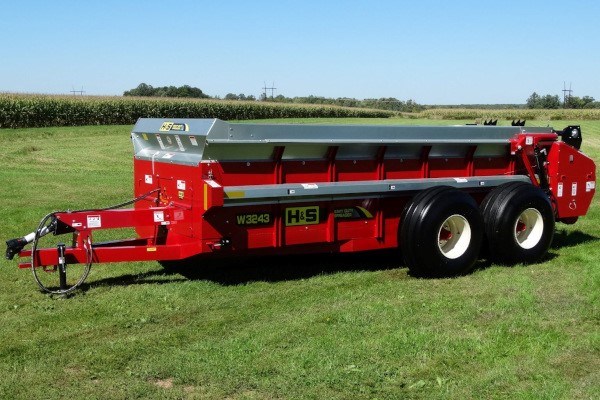

H&S SW3243 430-Bushel

Shop by Brand / H&S / Manure Spreaders / Heavy-Duty / SW3243 430-Bushel

Double tap to zoom



Features

  • The heavy-duty series of H&S manure spreaders feature a massive unitized welded frame with heavy floor supports, side stakes, and wrap-around steel front corners.
  • Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5″ U-channel side members. Compares with any on the market.
  • The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
  • Sides, front panel and both sides of the rear hydraulic endgate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze-up.
  • The solid virgin grade poly floor allows for considerably less torque to move a heavy load.
  • The two-speed apron drive is standard equipment.
  • The 29″ diameter beater has two styles of replaceable beater paddles. Half of the 14-beater paddles are blunt for widespread, and the other half are a sharp ripper-type for cutting and shredding. Beater side wiper blades are also standard equipment.
  • The hydraulic endgate features 2 cylinders with hydraulic lines running through a 3″ x 3″ tube under the floor for protection. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
  • Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
  • Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
  • The beater drive gear box is 1:1.5 bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut-off.
  • The apron drive is a 50:1 bronze worm gear with shear bolt protection.
  • PTO Apron Low-Speed/540 RPMs: 4′ 8.5″ per minute.
  • PTO Apron High-Speed/540 RPMs: 8′ 8.5″ per minute
  • The top beater provides load leveling and spreading of high heaped loads.
  • The SW3243 (western) has additional features to other heavy-duty models such as double main frame channels, additional floor supports, 1045 hardened drive shaft, and #80 drive chain.
  • A front splash guard is standard equipment.
  • Greaseable bearings

Specifications

MODELSW3243
Capacity
Capacity - Old Rating430 bu
Capacity Cu. Ft. Struck Level Per ASAE S324.2260.59
Capacity Cu. Ft. Heaped Per ASAE S324.2386.22
Dimensions
Top of Flare Width68″ (173 cm)
Inside Width60″ (152 cm)
Inside Length16' (4.88 m)
Inside Depth40 â…œ″ (102 cm)
Overall Width w/Standard Tires112″ (285 cm)
Overall Length23′ 2 ½″ (7.1 m)
Overall Loading Height-Top Of Side63″ (160 cm)
Overall Height w/Hyd. Endgate63 ½″ (161.3 cm)
Construction
Diameter Of Beater29″ (74 cm)
Main Apron ChainT-Rod
Spindle Size2 ½″ (6 cm)
Standard Tire Size16.5 × 16.1 Flotation
Weight w/Tires
Weight w/Tires5,500 lbs. (2,495 kg)
Standard
Rear Hydraulic EndgateStandard
PTO Speed540 - Standard | 1000 - Optional
JackStandard
Drive2-Speed
Front Splash PanelStandard
Hyd. Cyl On Hyd. Endgate2
Options
Upper BeaterStandard
