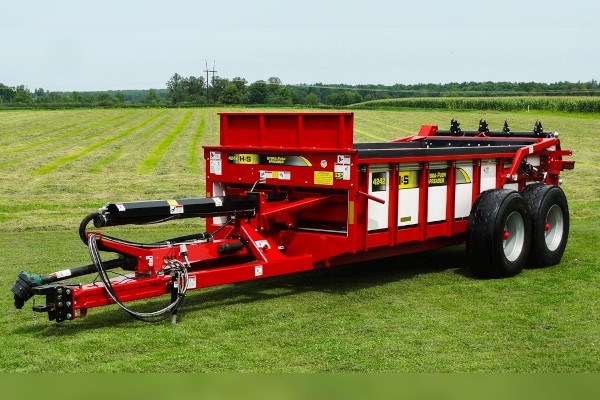

H&S HPH4242 425-Bushel

Shop by Brand / H&S / Manure Spreaders / Hydraulic Push / HPH4242 425-Bushel

Double tap to zoom

All horizontal beater hydraulic push models use solid virgin grade poly with UV inhibitor for the floor and sides, allowing less friction.
The hydraulic endgate has two cylinders with ⅜″ hose and pipe for faster operation in cold weather.
Heavy-duty rectangular tubing is used for the pole to ensure strength and long life.
Structural channel floor supports are spaced 9 ½″ apart are used for maximum floor strength.
Driveline protection is provided by a constant velocity PTO and straight shaft under the spreader connect to the rear mount angle gearbox, over to the beater drive sprocket and then to the beater assembly.
The hydraulic push-off system on all models features two hydraulic cylinders that sequence to reduce push-off forces for fast unloading of material.
Beater blades are replaceable.
Beater assembly is removable for stockpiling manure.
Removal of the beater assembly is done by simply removing the mounting bolts and removing the drive chain to the beater assembly.
Choice of bullnose or clevis hitch
Poly bump rails
LED highway lighting

MODEL	HPH4242
Capacity
Capacity - Old Rating	425 bu
Capacity - Cu. Ft Struck Level Per ASAE S324.2	246.53
Capacity Cu. Ft. Heaped Per ASAE S324.2	374.41
Height
Side Loading Height	61 ¼″ (61.3 cm)
2nd Beater Height	74 ¾" (190 cm)
Vertical Beater Height	-
Height - Top of Hyd. Endgate	65″ (165 cm)
Height at Top of Pusher	76″ (193 cm)
Height - Top of Screen	-
Dimensions
Inside Width	72″ (183 cm)
Inside Length	15′ (4.6 m)
Inside Depth	34″ (86 cm)
Overall Width w/Tires	10′ 2″ (310 cm)
Overall Length	28′ (8.5 m)
Construction
Standard Number of Beaters	2
Horizontal Beater Diameter/Lower	29″ (71 cm)
Horizontal Beater Diameter/Upper	20″ (51 cm)
Vertical Beater Diameter	-
Replaceable Beater Paddles	Yes
Removeable Beater Assembly	Yes
Hub	8 Bolt
Hitch Choices	Clevis or Bullnose
Tire Choices	425 x 22.5, 19L x 16.1 10 Ply, or 550/45 x 22.5
Hydraulic Endgate	Standard
Poly Side Rails	Standard
PTO Choices	1 ⅜" or 1 ¾" 1000 RPM PTO w/Overrunning Clutch
Hydraulic
Hydraulic Push Cylinder Diameter	3 ½″
Weight w/Tires
Weight w/Tires	7,000 lbs.
Standard
Rear Hydraulic Endgate	Standard
