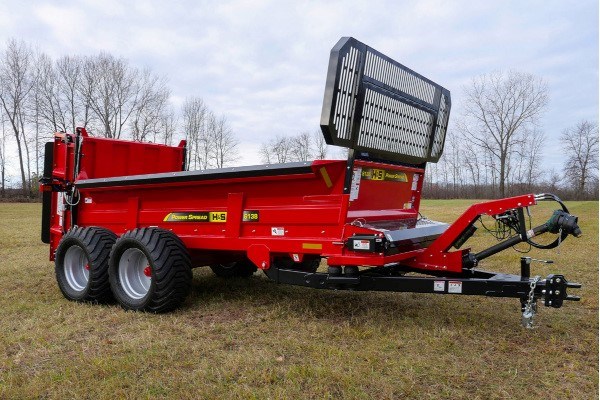

H&S PS6138 PowerSpread 373 Cu Ft Heaped

Shop by Brand / H&S / Manure Spreaders / Power Spread / PS6138 PowerSpread 373 Cu Ft Heaped

Double tap to zoom

373 cu ft heaped capacity per ASAE S324.2
A center drive shaft with a torque limiting clutch provides power and protection to the bottom driven monobloc gearbox.
Dual hydraulic cylinder guillotine/metering style endgate
Patented reverse flighting creates a more even spread pattern.
1/2″ thick vertical beater flighting
5/8″ marine log chain apron featuring a limited lifetime warranty.
2″ x 3″ x 1/4″ heavy tubular apron slats
Replaceable beater blades
Removable beater assembly allows for stockpiling manure.
Constant velocity PTO
Poly side load bump rails
LED highway lighting

MODEL	PS6138
Capacity
Capacity - Heaped Bushel Per S324.2	300
Capacity - Cu. Ft Struck Level Per ASAE S324.2	237
Capacity Cu. Ft. Heaped Per ASAE S324.2	373.34
Capacity - Heaped Bushel Per S324.1	N/A
Height
Side Loading Height	67″ (170.2 cm)
Vertical Beater Height	98″ (248.9 cm)
Height - Top of Hyd. Endgate	98.38″ (249.9 cm)
Dimensions
Inside Width	73″ (185.4 cm)
Inside Width - Top of Flare	95″ (241.3 cm)
Inside Depth	30″ (76.2 cm)
Overall Width w/Tires	121″ (307.3 cm)
Overall Length	297″ (7.5 m)
Inside Length	177″ / (4.5 m)
Construction
Standard Number of Beaters	2
Vertical Beater Diameter	34″ (86.4 cm)
Replaceable Beater Paddles	Yes
Removeable Beater Assembly	Yes
Apron Chain Size	5/8″ Grade 80
Hub	8,000 lbs.
Spindle Size	3″ (7.6 cm)
Tire Size	425 × 22.5, 19L x 16.1, 550/45 × 22.5
Cylinders on Endgate	2
Poly Bump Rails	Standard
PTO Choices	Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity
Hydraulic Endgate	Hydraulic Guillotine/Metering Style
Standard
Jack	Crank
Weight w/Tires
Weight w/Tires	9,400 lbs.
Other
Spread Pattern - Approximate	25' - 30' dependent on the weight of material

PS6138 PowerSpread 373 Cu Ft Heaped
