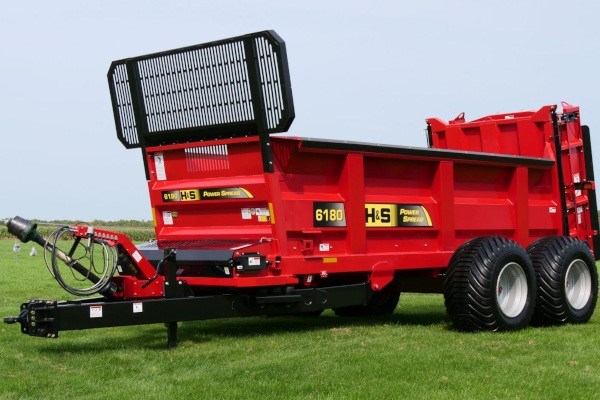

H&S PS6180 PowerSpread 793 Cu Ft Heaped

Shop by Brand / H&S / Manure Spreaders / Power Spread / PS6180 PowerSpread 793 Cu Ft Heaped

Double tap to zoom

793 cu ft heaped capacity per ASAE S324.2
A constant velocity tractor PTO and a center drive shaft with a torque limiting clutch provides power and protection to the bottom driven monobloc gearbox.
Bottom drive monobloc gearbox with 3-1/8″ output shafts vs. 2-1/2″ on the competition
Dual hydraulic cylinder guillotine/metering style endgate
3/4″ thick vertical beaters w/ replaceable beater blades vs. 1/2″ on some competitors.
Vertical beaters feature reverse flighting on the top 20+″ of the beater flighting. This patented feature allows for an even spread pattern of material.
The hydraulically driven apron features heavy-duty dual drive apron gearboxes.
3/4″ marine grade 80 log chain vs. competitor’s 5/8″
Heavy 2″ x 4″ x 1/4″ tubular apron slats
Single-bolt, easy-adjust main apron chain
Rubber tongue suspension is standard equipment, not an option like some of the competition.
Heavy-duty rectangular tubing is used for the pole to ensure strength and long life.
Removal of the beater assembly is done by simply removing the mounting bolts and disconnecting the PTO gearbox driveshaft.
Poly side load bump rails
LED lighting

MODEL	PS6180
Capacity
Capacity - Heaped Bushel Per S324.2	638
Capacity - Cu. Ft Struck Level Per ASAE S324.2	578
Capacity Cu. Ft. Heaped Per ASAE S324.2	793
Capacity - Heaped Bushel Per S324.1	764
Height
Side Loading Height	94.75″ (240.7 cm)
Vertical Beater Height	132″ (335.3 cm)
Height - Top of Hyd. Endgate	127″ (322.6 cm)
Dimensions
Inside Width	78.75″ (200 cm)
Inside Width - Top of Flare	96″ (243.8 cm)
Inside Depth	52.5″ (133.4 cm)
Overall Width w/Tires	169″ (429.3 cm)
Overall Length	393″ (9.98 m)
Inside Length	235.5″ (3.44 m)
Construction
Standard Number of Beaters	2
Vertical Beater Diameter	39″ (99 cm)
Replaceable Beater Paddles	Yes
Removeable Beater Assembly	Yes
Apron Chain Size	3/4″ Grade 80
Hub	25,000 lbs. Rating Ea.
Spindle Size	4.5″ (11.43 cm)
Tire Size	700/50 x 26.5
Cylinders on Endgate	2
Poly Bump Rails	Standard
PTO Choices	Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity
Hydraulic Endgate	Hydraulic Guillotine/Metering Style
Standard
Jack	Choice of Crank or Hydraulic
Weight w/Tires
Weight w/Tires	21,768 lbs.
Other
Spread Pattern - Approximate	25' - 30' dependent on the weight of material

PS6180 PowerSpread 793 Cu Ft Heaped
