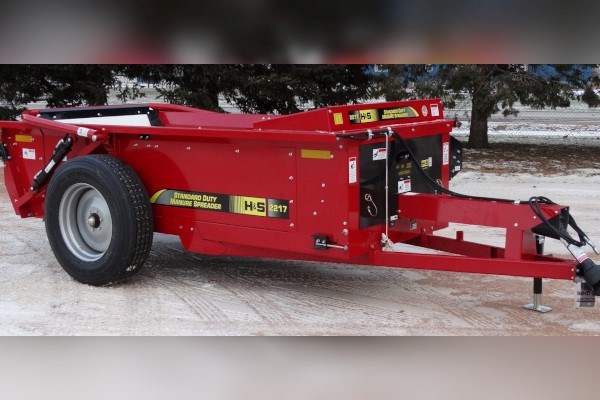

H&S S2217 175-Bushel

Shop by Brand / H&S / Manure Spreaders / Standard Duty / S2217 175-Bushel

Double tap to zoom

All welded heavy-duty A-frame hitch assembly and full-length unitized main frame
The plastic-coated plywood floor allows for considerably less torque to move a heavy load.
The drive utilizes the patented H&S 2-speed gearbox. Shifting is all done in the enclosed two speed/beater shutoff gearbox.
A heavy-duty beater assembly ensures aggressive shredding action with wide and even spread patterns.
Spreader box sides are constructed of powder-coated steel.
Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
PTO Apron Low Speed/540 RPMs: 4′ 9″ per minute.
PTO Apron High Speed/540 RPMs: 8′ 9″ per minute
A front splash guard is standard equipment.
Greaseable bearings

MODEL	S2217
Capacity
Capacity - Old Rating	175 bu
Capacity Cu. Ft. Struck Level Per ASAE S324.2	91.63
Capacity Cu. Ft. Heaped Per ASAE S324.2	152.13
Dimensions
Top of Flare Width	63 ½″ (161 cm)
Inside Width	54″ (137 cm)
Inside Length	11′ 1″ (338 cm)
Inside Depth	25 ¾″ (65 cm)
Overall Length	17′ 8″ (538 cm)
Overall Loading Height-Top Of Side	45 ½″ (116 cm)
Overall Height w/Hyd. Endgate	49″ (125 cm)
Overall Width w/Standard Tires	83 ½″ (212 cm)
Construction
Standard Tire Size	10R x 22.5
Spindle Size	2″ (5 cm)
Diameter Of Beater	27″ (68 cm)
Number of Paddles	8
Main Apron Chain	T-Rod
Box Construction	Powder Coated Steel
Floor Construction	Poly Bonded
Apron Drive	Gearbox, 2-Speed PTO
Weight w/Tires
Weight w/Tires	2,030 lbs. (921 kg)
Standard
Swing Away Jack	Standard
Options
Upper Beater	Optional
