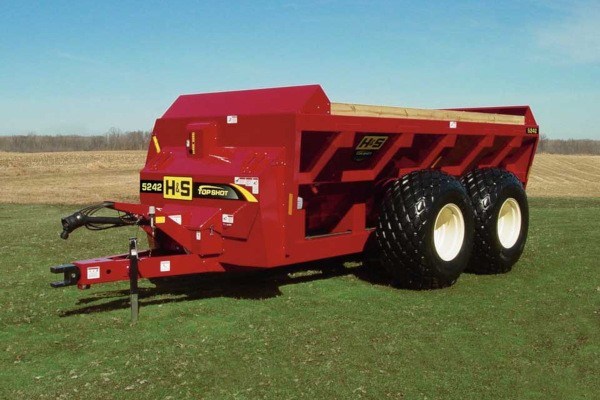

H&S TS5242 4,200-Gallon

Shop by Brand / H&S / Manure Spreaders / Top Shot Side Discharge / TS5242 4,200-Gallon

Double tap to zoom



Features

  • 40″ wide TOP SHOT side discharge expeller beater
  • 30″ diameter round core segmented auger
  • The 1000 RPM PTO driven system features a heavy-duty gearbox reduction system with heavy-duty chain and an overrunning torque limiting clutch for protection and smooth power transfer.
  • A master/slave cylinder system raises and lowers the main auger evenly to keep material moving to the expeller.
  • The auger system hydraulically raises and lowers a full 8″ to break-up material that may bridge during the unloading process.
  • Reversible bolt-on square tooth paddles shred and rip material with a TOP SHOT action for an even spread pattern.
  • The heavy-duty expeller system, with a quick release poly-lined fine spread pan and side fins, helps cut the drift of material towards the tractor and spreader and provides an excellent spread pattern.
  • A hydraulic adjust top expeller shield allows you to set the distance of material being discharged.
  • The left side tank poly liner allows material to slide to the auger.
  • Front and rear splash guards
  • Automatic chain oiler system
  • Remote grease system
  • Highway lighting system

Specifications

MODEL5242
CUBIC FT. STRUCK LEVEL564
GALLON CAPACITY4200
DIMENSIONS
TANK LENGTH20′
OVERALL LENGTH27′ 7″
TANK WIDTH - TOP97″
AUGER DIAMETER30″
CONSTRUCTION
Auger Diameter30"
POLY LINED TANKLeft Side
OVERRUNNING CLUTCHYes
SHEAR BOLT PROTECTIONYes
STANDARD
PTO1000 RPM 1 â…œ″ Std
EXPELLER WIDTH40″
FRONT SPLASH-GUARDSStandard
REAR SPLASH-GUARDSStandard
AUTOMATIC OILERStandard
HIGHWAY LIGHTINGStandard
WEIGHT16,500 lbs
