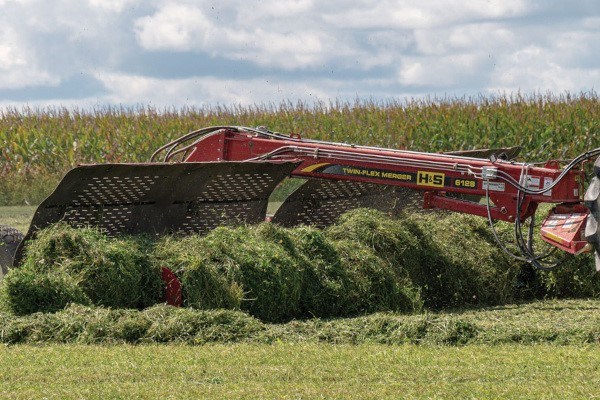

H&S TF6128 - 28'

Shop by Brand / H&S / Mergers / Twin-Flex Mergers / TF6128 - 28'

Double tap to zoom

28’ of continuous merging with (2) 14’ independent heads
Best value per linear foot of machine width for a 2-head continuous merger.
H&S patented SOFT-SHOE suspension system reduces field damage from head scuffing.
Patented center cam/center drive design provides smooth, clump-free windrows. NO BUNCHING!
WIDEST cross-conveyor belt in its class at 42″.
The ability (with up to 16’ windrow cuts) to merge (5) windrows into one in either direction. No additional cross conveyor extension is needed!
Self-contained hydraulic system features a 35-gallon reservoir, coupled with large displacement motors for the heads and cross conveyor, is able to handle HEAVY crops.
Rubber mounted teeth
Highest torque rated hydraulic motors in the industry, coupled with heavy 2-Ply cross-conveyor belts.
Cross conveyor belts feature a high torque drive system – the best in the industry!
Merge left, merge right, or split direction, or merge with one wing raised.
Requires no sensors to run the machine. Very simple to operate.
Narrowest transport width & lowest height
Heavy-duty 15R x 19.5 radial tires that don’t scuff in the field

Options

MODEL	TF6128
Working Width
Working Width	28' 2"
Dimensions
Transport Width	8′ 6″
Transport Length	25'
Transport Height	9' 8"
Features
Pick-up Heads	2 (14")
Head Travel	20" (10" Up & 10" Down)
Pick-up Strippers	Poly
Pick-up Teeth	Rubber Mounted
Cross-Conveyor Belt Width	42"
Cross-Conveyor On/Off/Right/Left/Split	Electric-over-Hydraulic (adjustable in-cab)
Skid Shoe Height	Manual Adjust
Head Suspension	Exclusive SOFT-SHOE Suspension Technology System with In-Cab Adjust
3-Point Hitch	CAT II, III, or III-N
Standard
Drive System	3-Section High Volume Pump
PTO	1 3/8" or 1 3/4 1000 RPM Std
Hydraulic Requirements	2 Sets of Remotes (Requires Close Center Hydraulic System) 2,750 PSI 12 GPM Min.
Auto Default Right-Hand Merge	Standard
Capacity
Oil Reservoir Capacity	35 gallon
Tires
Tire Size	15R x 19.5 Radial
Weight
Weight	12,260#
Tractor Requirements
Tractor Size	95 HP Minimum
