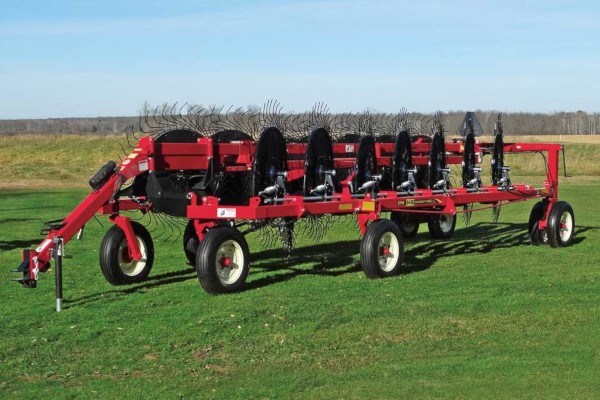

H&S HC5114 14-Wheel Hi-Capacity

• The HC5114 HI-CAPACITY 14-wheel rake has the raking wheels positioned ahead of the rake arms, main frame beams, and transport wheels.
• With a high and wide rear frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
• A brake band on each front gauge wheels can be easily adjusted to field conditions.
• The large, independent 7.5 mm 60″ rake wheels deliver more capacity and turn slower for less tooth wear.
• Beehive-style spring suspension system allows the rake wheels to follow the contours of the ground smoothly.
• A large diameter rake wheel hub adds strength to the rake wheel dish.
• The adjustment for the ground pressure on the rake wheels allows the operator to fine-tune to fit varying conditions.
• The rake arms feature two ball bearings on each end of the arm for long life, smooth operation, and less wear than rakes with bushings.
• The windrow width adjustment is done with a hand crank and adjusts windrows from 38″ to 58″ width.
• Independent articulated rake beams have the flexibility to flex 3′ up or 3′ down.
• Limited oscillating offset tandem transport wheels ensure a smooth, level ride, even over irrigation tracks.
• Raking widths can be hydraulically adjusted in any position to a pre-determined raking width up to 28′.
• Rake wheel wind boards are standard.

Options

• 2-Wheel Add-On Kit (for converting to a 16-Wheel Rake)
• 2-Wheel Center Kicker Assembly w/Hydraulic Lift
• Highway Lighting Kit
• 10,100# Safety Chain
