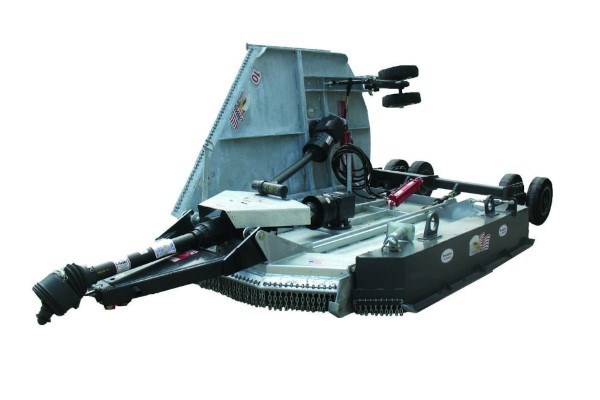

Modern Ag 10' OFFSET FLEX PREDATOR

Shop by Brand / Modern AG Products / Rotary Cutters / Flex Wing / 10' OFFSET FLEX PREDATOR

Double tap to zoom



Features

  • Hot-Dipped Galvanized Deck & Frame
  • New Style Leveling Tongue
  • Optional Aircraft Tires
  • Front & Rear Chain Guard Standard

Specifications

Cutting Width . . . . . . . . . . . 124”
Transport Width . . . . . . . . . 96”
Overall Width . . . . . . . . . . . 140”
Overall Length . . . . . . . . . . 180”
Cutting Height . . . . . . . . . . 2” - 15”
Blade Overlap . . . . . . . . . . 6 ”
Wing Lift Hydraulics . . . . . Standard
Wing Flex . . . . . . . . . . . . . . 90° up / 22° down
Jackstand . . . . . . . . . . . . . . Standard
Hitch . . . . . . . . . . . . . . . . . . Swivel Clevis
Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
Horsepower Required (min) . . . . . . . . . . 50 hp
Main Gearbox or Divider Box* . . . . . . . . . 255 hp
Outboard Gearbox or Center & Wings* . . . . . . 210 hp
Output Shaft Diameter . . . 2-3/8”
Cut Capacity . . . . . . . . . . . . 3-1/2”

Blade Tip Speed:
Main or Center 540 . . . . . . 15,268 FPM
Outboard 540 . . . . . . . . . . . 15, 016 FPM
Driveline Size:
Main-Pull Type. . . . . . . . . . Cat. 5 Constant Velocity
Outboard or Center wings . . . . . . . . . Cat. 4 w/Slip Clutch
Deck Thickness . . . . . . . . . 3/16”
Side Skirt . . . . . . . . . . . . . . 1/4” x 8”
Replaceable Skid Shoes . . Standard
Safety Chains . . . . . . . . . . . Standard (Front & Rear)
Weight (Approx) . . . . . . . . . 4900 lbs.
Standard Tires . . . . . . . . . . Laminated 600 x 9
Dual Wingwheels . . . . . . . . Option
Hydraulic Level Lift . . . . . . Option
Deck Rings to Protect Deck . . . . . . . . . Standard
