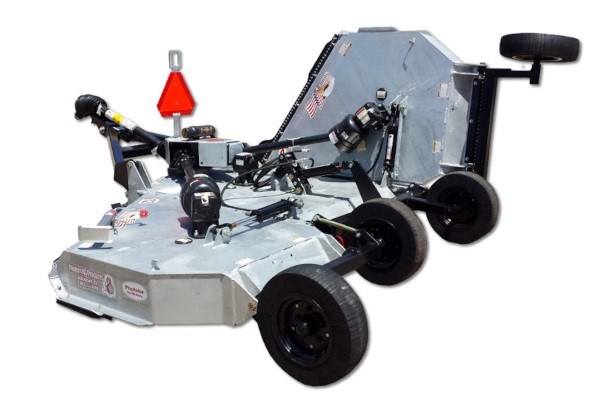

Modern Ag 12' PREDATOR

Cutting Width . . . . . . . . . . . 144”
Transport Width . . . . . . . . . 90”
Overall Width . . . . . . . . . . . 151”
Overall Length . . . . . . . . . . 159”
Cutting Height . . . . . . . . . . 2”-12”
Blade Overlap . . . . . . . . . . 6”
Wing Lift Hydraulics . . . . . Standard
Wing Flex . . . . . . . . . . . . . . 90° Up/22° Down
Jackstand . . . . . . . . . . . . . . Standard
Hitch . . . . . . . . . . . . . . . . . . Swivel Clevis
Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
Horsepower Required (min) . . . . . . . . . . 40 hp...(max)
(min) . . . . . . . . . . . . . . . . . . 70 hp...(max)
Main Gearbox or Divider Box* . . . . . . . . . 160 hp Outboard Gearbox
or Center & Wings* . . . . . . 70 hp
Output Shaft Diameter . . . 2”
Cut Capacity . . . . . . . . . . . . 2-1/2”
Blade Tip Speed:
Main or Center 540 . . 16.362 fpm
Wings 540 . . 15,708 fpm
Driveline Size:
Main . . . . . . . . . . . . . . . . . . Cat. 4 Constant Veloc. Outboard Center
or Wings . . . . . . . . . . . . . . . Cat. 3 w/Slip Clutch
Deck Thickness . . . . . . . . . 3/16”
Side Skirt . . . . . . . . . . . . . . 1/4” x 11”
Replaceable Skid Shoes . . Standard
Front Safety Chains . . . . . . Standard
Rear Safety Chains . . . . . . Standard
Weight (Approx) . . . . . . . . . 3,020 lbs.
Standard Tires . . . . . . . . . . Laminated 600 x 9
