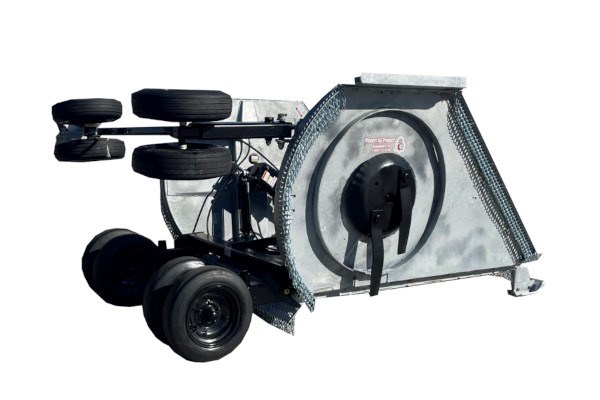

Modern Ag 15' PREDATOR

Cutting Width . . . . . . . . . . . 180″
Transport Width . . . . . . . . . 90″
Overall Width . . . . . . . . . . . 187″
Overall Length . . . . . . . . . . 180″
Cutting Height . . . . . . . . . . 2″-15″
Blade Overlap . . . . . . . . . . 6″
Wing Lift Hydraulics . . . . . Standard
Wing Flex . . . . . . . . . . . . . . 90° Up/22° Down
Jackstand . . . . . . . . . . . . . . Standard
Hitch . . . . . . . . . . . . . . . . . . Swivel Clevis
Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
Horsepower Required (min) . . . . . . . . . . 60 hpMain
Gearbox or Divider Box* . . 255 hp
Outboard Gearbox
or Center & Wings* . . . . . . 210 hp
Output Shaft Diameter . . . 2-3/8″
Cut Capacity . . . . . . . . . . . . 3-1/2″
Blade Tip Speed:
Main or Center 540 . . 15,268 fpm
1000 . .15,072 FPM
Wings 540 . . 15,016 fpm
1000 . .14,996 FPM Driveline Size: Main . . . . . . . . . . . . . . . . . . Cat. 5 Constant
Velocity Outboard Center or Wings . . . . . . . . . . . . . . . Cat. 4 w/Slip Clutch
Deck Thickness . . . . . . . . . 3/16″
Side Skirt . . . . . . . . . . . . . . 1/4″ x 10 1/4″
Replaceable Skid Shoes . . Standard
Front Safety Chains . . . . . . Standard
Rear Safety Deflectors:
Rubber Guard Standard with Rear Chain Option
Weight (Approx) . . . . . . . . . 6500 lbs.
Standard Tires . . . . . . . . . . Laminated 600 x 9
Dual Wing wheels . . . . . . . . Option
Hydraulic Level Lift . . . . . . Option
Deck Rings to Protect Deck . . . . . . . . . Standard
