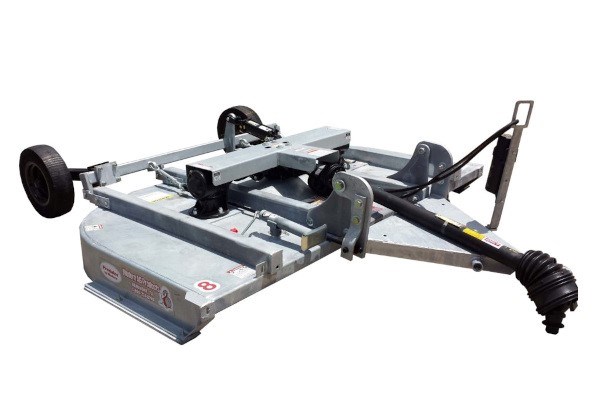

Modern Ag 8' PREDATOR

Cutting Width . . . . . . . . . . . 96”
Transport Width . . . . . . . . . 102”
Overall Width . . . . . . . . . . . 102”
Overall Length . . . . . . . . . . 97”
Overall Height . . . . . . . . . . 2” - 15”
Blade Overlap . . . . . . . . . . 3”
Jackstand . . . . . . . . . . . . . . Standard
Hitch . . . . . . . . . . . . . . . . . . QA Cat. II or Clevis
Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
Horsepower Required (min):
Lift . . . . . . . . . . . . . . . . . . . . 50 hp
Pull . . . . . . . . . . . . . . . . . . . 45hp
Main Gearbox or Divider Box* . . . . . . . . . 150 hp
Outboard Gearbox or Center & Wings* . . . . . . 95 hp
Output Shaft Diameter . . . 2-3/8”
Cut Capacity . . . . . . . . . . . . 3”
Blade Tip Speed:
540 . . . . . . . . . . . . . . . . . . . 15,847 FPM
1000 . . . . . . . . . . . . . . . . . . 15,847 FPM
Driveline Size:
Pull Type . . . . . . . . . . . . . . . Pull-Cat. 5 CV w/ Slip Clutch
QA Lift Type . . . . . . . . . . . . QA -Cat. 4 w/Clutch
Deck Thickness . . . . . . . . . 3/16”
Side Skirt . . . . . . . . . . . . . . 1/4” x 8”
Front Safety Defl ectors . . . Chain Option
Rear Safety Defl ectors:
Rubber Guard Standard with Chain Option
Weight (Approx): . . . . . . . . QA 1975 lbs.
Pull 2370 lbs.
Standard Tires . . . . . . . . . . Laminated 600 x 9
Dual Tailwheels (Pull Type) Option
Hydraulic Level
Lift (Pull Type) . . . . . . . . . . Standard
