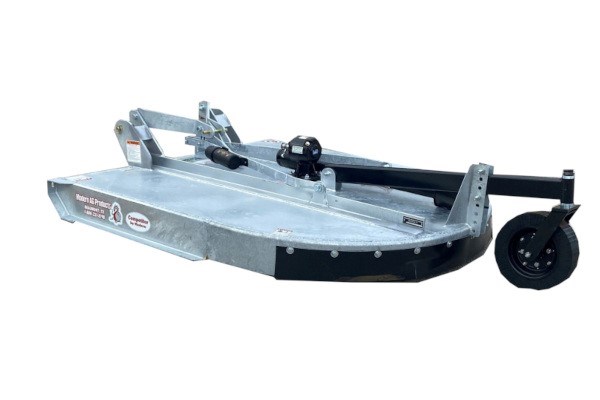

Modern Ag 6' COMPETITOR

Double tap to zoom



Features

  • New heavy duty 3/8” Gearbox Plate
  • Single piece body with smooth top
  • Stronger A-frame, tailwheel boom and bracket
  • Smooth rounded rear deck
  • Solid top weld with double steel wall top edge
  • Heavy duty stump jumper with laminated tailwheel
  • Shear pin protection
  • 48 hp gearbox rating
  • Slip clutch option available
  • 1/2” A Frames - QA
  • Cat. 1 Hitch

Specifications

Cutting Width . . . . . . . . . . . 72”
Transport Width . . . . . . . . . 75”
Overall Width . . . . . . . . . . . 75”
Overall Length . . . . . . . . . . 106”
Cutting Height . . . . . . . . . . 2” - 10”
Hitch . . . . . . . . . . . . . . . . . . Cat. I 3 PT & Quick Attach
Blade Center . . . . . . . . . . . Pan Stump Jumper
Gearbox Rating* . . . . . . . . 48hp
Horsepower Required (min):
72” . . . . . . . . . . . . . . . . . . . . 30 hp
Cut Capacity . . . . . . . . . . . . 2”
Blade Tip Speed:
72” . . . . . . . . . . . . . . . . . . . . 14.995 FPM
Driveline Size . . . . . . . . . . . Cat. 3
Deck Thickness:
72” . . . . . . . . . . . . . . . . . . . . 3/16"
Slip Clutch Protection . . . . Option
Front Safety Deflectors . . . Chain Option
Rear Safety Deflectors:
Rubber Guard Standard with Chain Option
Weight (Approx):
72” . . . . . . . . . . . . . . . . . . . . 715 lbs.
Tires . . . . . . . . . . . . . . . . . . Laminated
Side Skirt . . . . . . . . . . . . . . 1/4” x 8”
