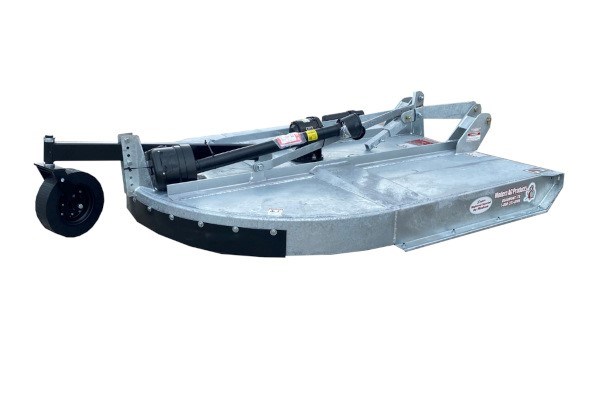

Modern Ag 7' SUPER HIGHWAY SPECIAL

Double tap to zoom



Features

  • 1/2” gearbox plate
  • Heavy duty A-frame
  • New rounded rear deck
  • 1/2” x 4” Heavy Duty High Vacuum blades
  • 3/8” Deck ring (standard)
  • Counter sunk bolt on skid plate
  • Upgraded 95 hp gearbox rating
  • Heavy duty stump jumper with laminated tailwheel
  • Extra Heavy Duty four plate slip clutch protection with flexible top link
  • 140 hp gearbox option available
  • Dual tailwheel option available
  • New reinforced tailwheel bracket
  • Quick Attach
  • 3/4” A Frames
  • Cat. 1 Hitch

Specifications

Cutting Width . . . . . . . . . . . 84”
Transport Width . . . . . . . . . 90”
Overall Width . . . . . . . . . . . 90”
Overall Length . . . . . . . . . . 100”
Overall Height . . . . . . . . . . 2” - 10”
Hitch . . . . . . . . . . . . . . . . . . Quick Attach Cat. I
Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
Horsepower Required (min) . . . . . . . . . . 45 hp
Gearbox Rating* . . . . . . . . 95 hp - 140 hp option
Cut Capacity . . . . . . . . . . . . 3”
Blade Tip Speed:
84” . . . . . . . . . . . . . . . . . . . . 17.495 FPM
Driveline Size . . . . . . . . . . . Cat. 5 w/Slip Clutch
Deck Thickness . . . . . . . . . 3/16”
Front Safety Defl ectors . . . Chain Option
Rear Safety Defl ectors:
Rubber Guard Standard with Chain Option
Weight (Approx):
84” . . . . . . . . . . . . . . . . . . . . 1385 lbs.
Standard Tires . . . . . . . . . . Laminated
Dual Tailwheels . . . . . . . . Option
Side Skirt . . . . . . . . . . . . . . 1/4” x 8”
Deck Rings to
Protect Deck . . . . . . . . . . . Standard
