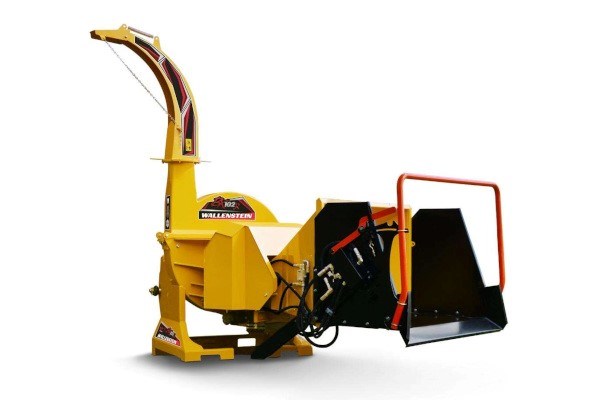

Wallenstein BX102RI

Double tap to zoom



Features

Adjustable Discharge Chute

Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.

Bearing Plate Protection

Keeps wood chips from getting into the bearing and causing damage.

Cat II iMatch Quick Hitch Compatible

Easily attach to your tractor without leaving your seat.

Dual Active Rollers

Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.

Fold Up Feed Hopper - No Tools

For easy transport. No tools required.

Oversized Heavy Duty Rotor

Extra large chipper intake backed up by extra large rotor spinning with high momentum.

Oversized Opening

Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.

P3 Pulse

The P3 Pulse controller is designed to enhance the machines power, performance, and productivity.

Positional Discharge Deflector

The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.

Reversible Rotor Knives

Standard reversible rotor knives double the longevity of your knives.

Safety Control Bar

Forward/reverse control with two stop positions.

Shearbolt Protected PTO Drivetrain

Move on from a power spike by simply replacing a single shear bolt.

Twig Breaker

The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.

Specifications

Chipping Capacity10" (25 cm)
Engine HP Range75 - 120
Feed SystemDual Hydraulic Roller Feed
On-Board IntelligenceP3 Pulse™
Chipper TypeDisc
Required Hydraulic Flow4 - 8 gpm (15 - 30 lpm)
Chipper Hopper Opening30" x 42" (76 cm x 107 cm)
Chipper Rotor Opening10" x 17" (25 cm x 43 cm)
Number of Chipper Knives4
Rotor Diameter36” (92 cm)
Rotor Weight425 lbs (193 kg)
Discharge Chute Height100" (253 cm)
Discharge Chute Rotation360°
Drive SystemPTO Direct Drive
Rated RPM540 - 1000
PTO Height34" (86 cm)
Total Weight1950 lbs (885 kg)
Dimensions Open (LxWxH)108" x 85" x 100" (273 cm x 215 cm x 253 cm)
Dimensions Folded (LxWxH)85" x 71" x 100" (215 cm x 180 cm x 253 cm)
Mounting SystemCat II, iMatch™ & Quick Hitch Compatible
